Strands

9" FOR9T DRAGON DRIVE

Name: 9" FOR9T DRAGON DRIVE
Brand: Strands
SKU: 270968
Price: 449.0 USD
Availability: InStock

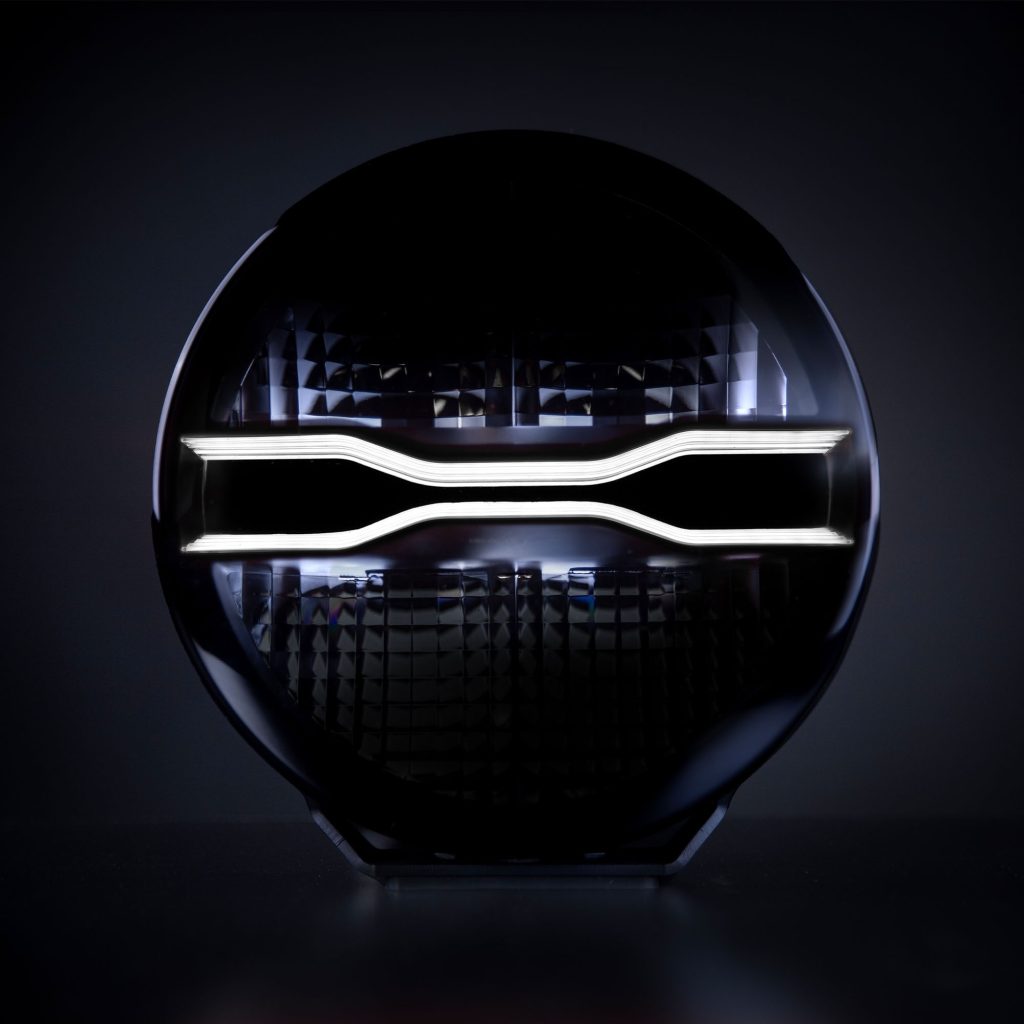

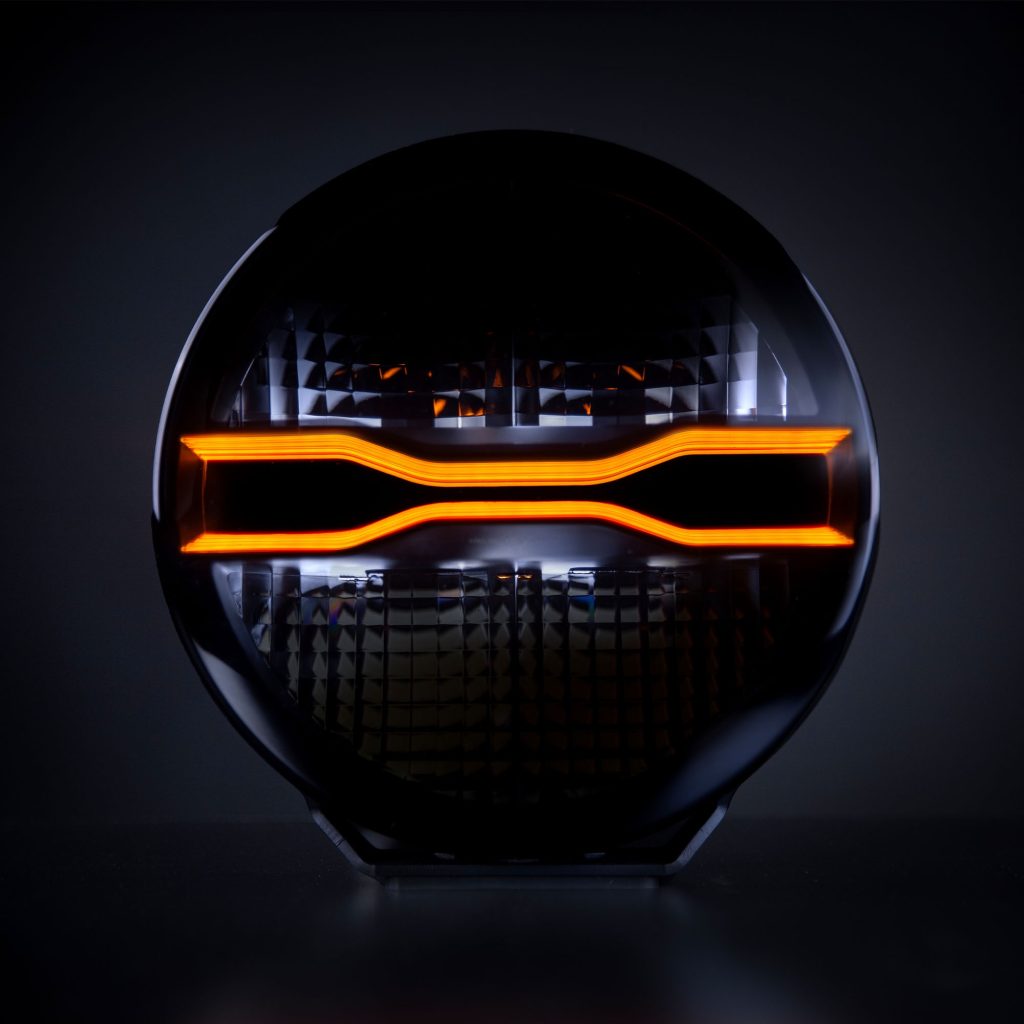

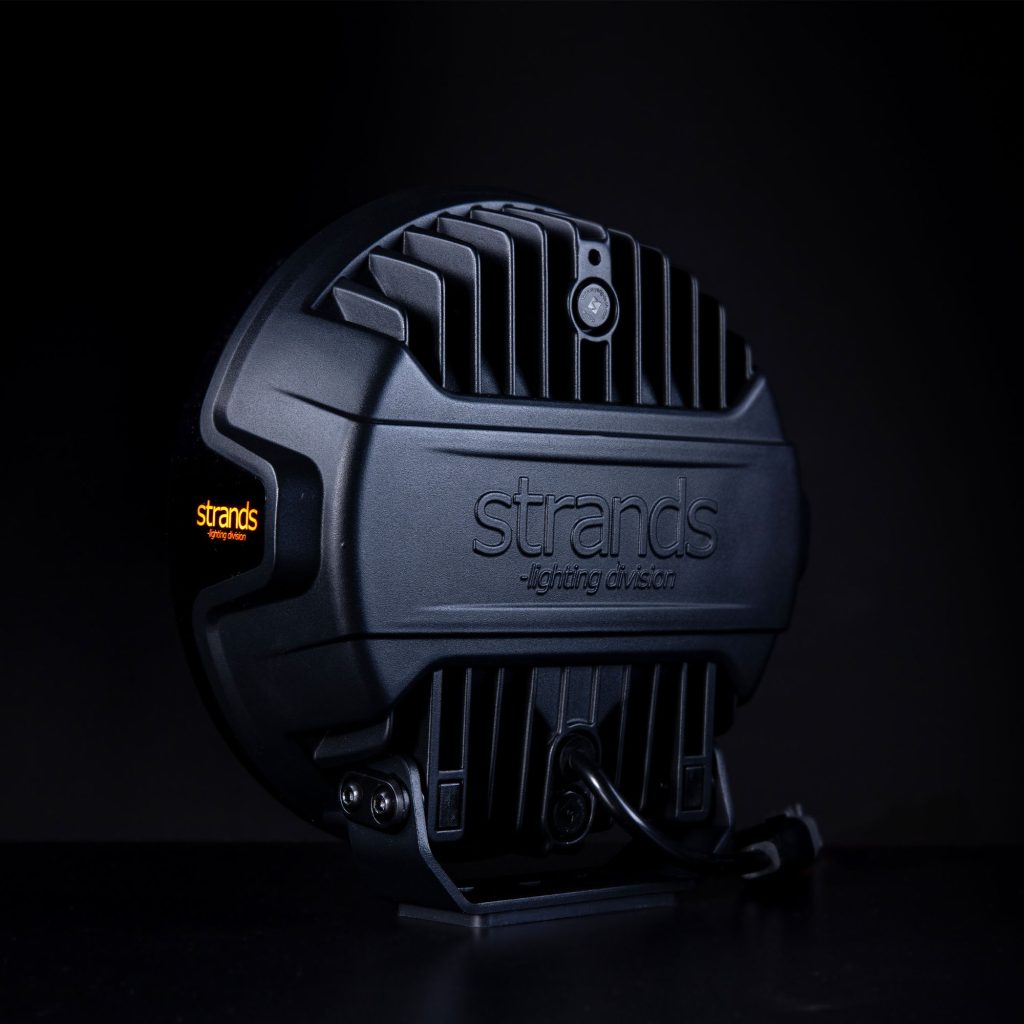

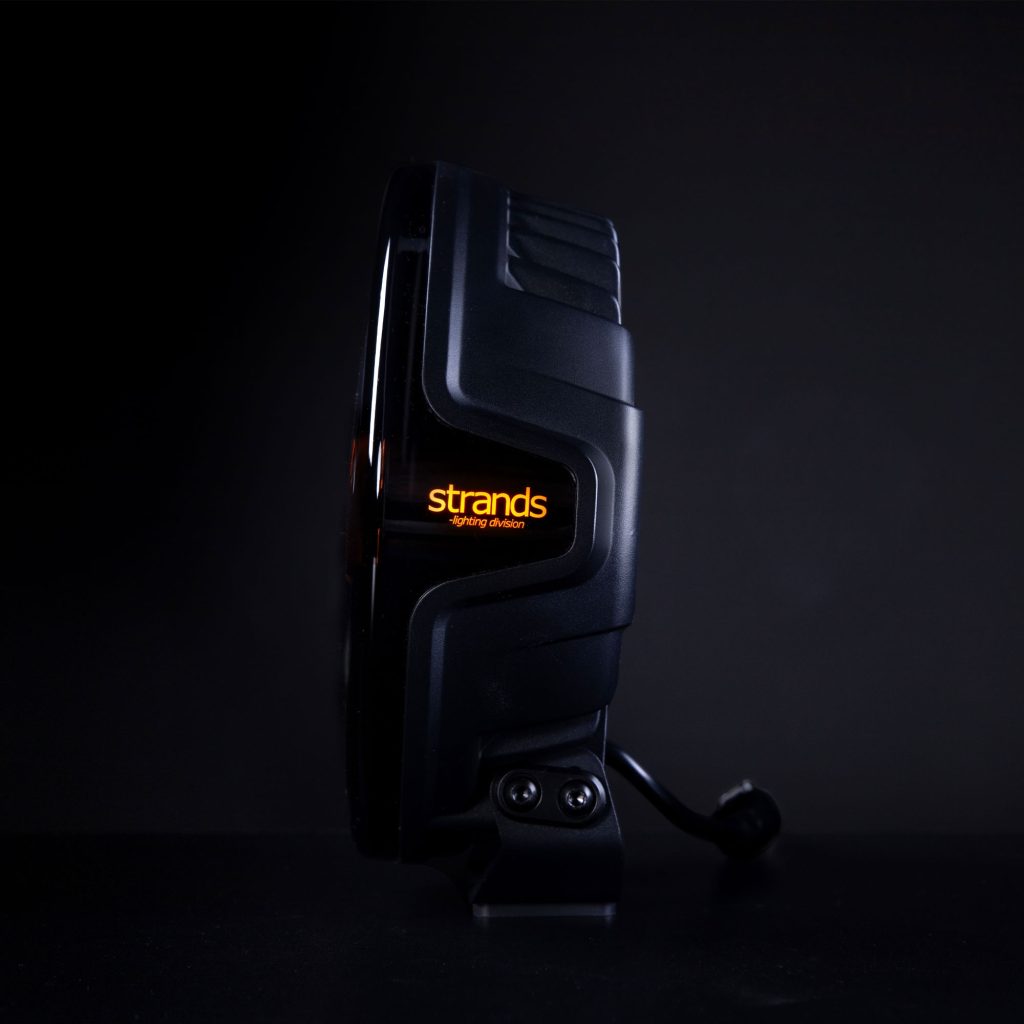

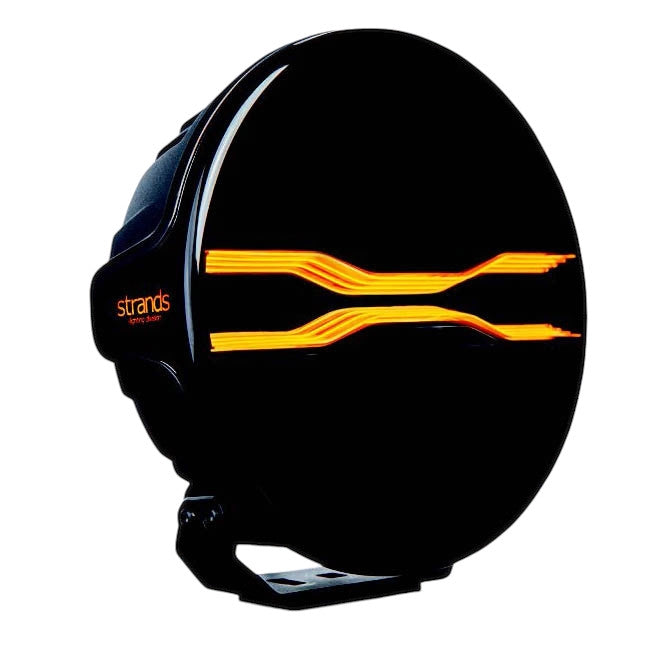

Not only a good-looking addition to any vehicle, the Dragon Drive driving light packs real power behind its brightness. The extended beam has 9300 lumens, 6500 kelvins, and a range of 586 m @ 1 lux. The Dragon Drive is easy to install, thanks to a 150 mm cable with a DT-4 connector. With high-quality aluminum and polycarbonate and IP-class IP67, you can be sure it will be a lasting addition to your vehicle. It is covered by Strands Lighting Divisions’ market-leading 3-year function warranty.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

Product Specification

VOLTAGE 10-48V DC
THEORETICAL EFFECT (W) 12V144W
THEORETICAL EFFECT (W) 24V144W
CONSUMPTION 70W
FUNCTIONS Driving light, Amber/White position light
ACTUAL LUMEN 9300
1 LUX @ 586m
IP-CLASS IP67
KELVIN 6500
HOUSING COLOUR Black
LENS COLOUR Clear / Dark
BEAM PATTERN Extended Beam
POSITION LIGHT Yes, White and amber
CONNECTION DT-4
CABLE LENGTH 150mm
BRACKET MATERIAL Stainless steel
MATERIAL HOUSING Aluminum
MATERIAL LENS Polycarbonate
DIAMETER 220mm
DEPTH 90mm
HEIGHT INCLUDING BRACKET 226mm
OPERATING TEMPERATURE -20°C - +45°C
E-APPROVED No
EMC-CERTIFICATE ECE R10
